The Scaffold Davit Anchor is an overhead anchorage solution for use on scaffolding. The convenient horizontal pivoting system allows the anchor point to adjust to the ideal position directly above the worker, reducing swing fall hazard. Once positioned, the arm locks securely for safety.
Features:
- Versatile overhead anchor point with flexibility in mounting locations

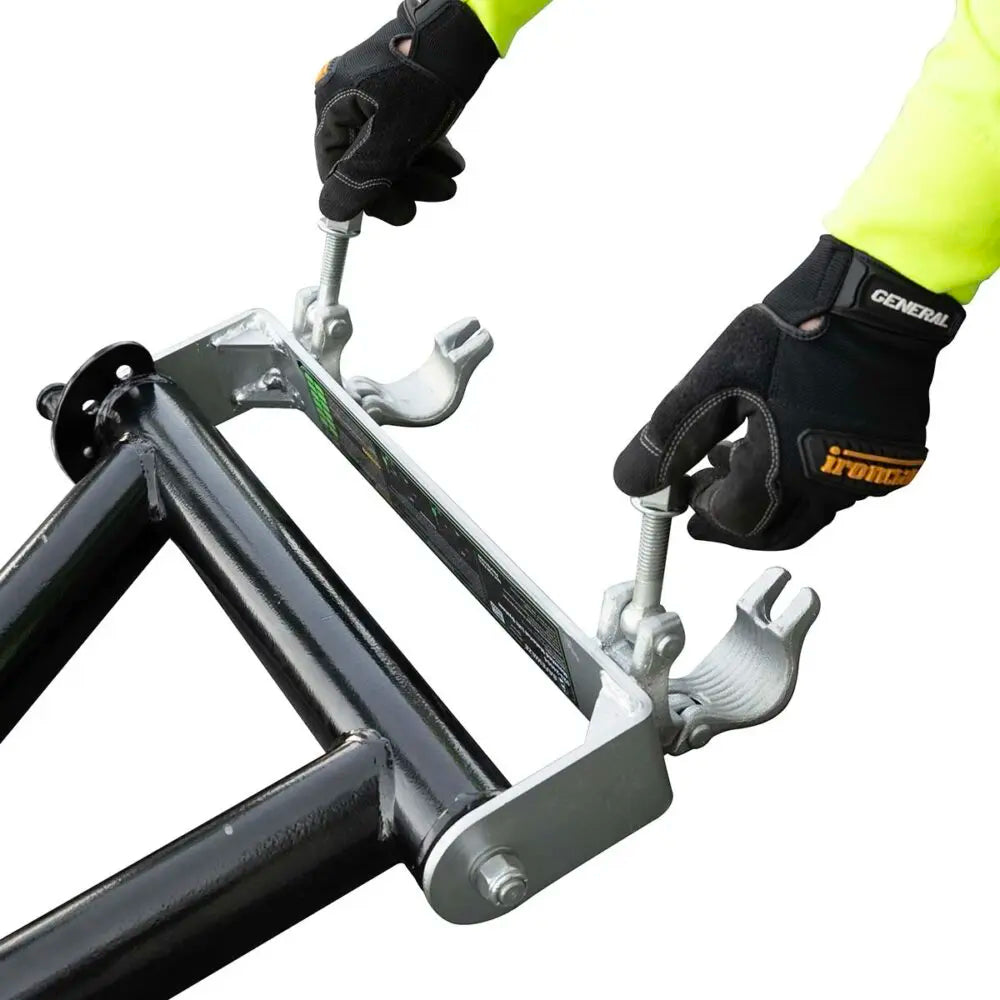

- Easily installs directly to vertical post with just two clamps
- For use on supported scaffolding with 1.6"-2" diameter
- Horizontal swivel feature for optimum positioning to reduce swing fall risk
- Locks securely in place to prevent movement during use
- Use for fall arrest or fall restraint with the appropriate SRL or lanyard
| Materials: | Steel |
| Weight: | 32 lbs. (14.5 kg) |
| Anchor Dimensions: | 40" x 18" x 2.4" (1016 mm x 457.2 mm x 61 mm) |
| Minimum Breaking Strength: | 5,000 lbs. (22kN) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
All products are subject to availability, and inventory levels may fluctuate. Lead times may also vary. Please call 303-537-5832 for detailed information and pricing.
