Description
Devices

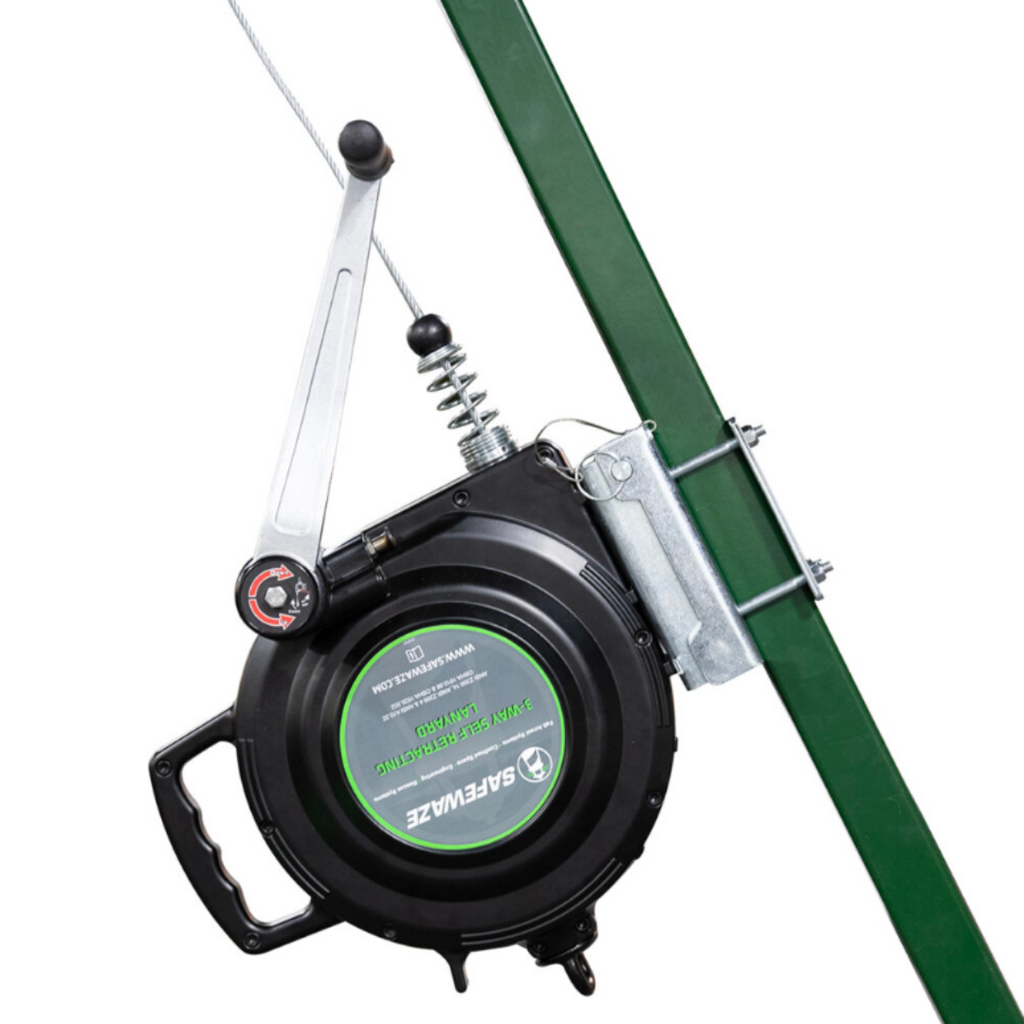

The 3-Way System with universal mounting bracket is designed for easy use in confined space. This multi-function device serves as the support element, provides fall protection and facilitates rescue or evacuation if necessary. This device mounts to both Xtirpa systems and Safewaze tripods.
Features:
- Durable aluminum housing
- Easily stored, dual-function crank handle
- 6:1 gear ratio
- Convenient attached carrying handle
- Matching bracket 019-11010 must be on tripod before mounting (not included)
- Universal mounting bracket fits Xtirpa and Safewaze products
- Unit is service and repair capable
| Class 1 SRL | |
| Materials: | Aluminum housing, steel and plastic crank handle, zinc plated steel bracket, galvanized steel cable, YCM steel snap hook |
| Weight: | 44.3 lbs. (20.1 kg) |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity | Up to 420 lbs. (191 kg) |
| Max Operation Force: | 30 lbs. |
| Minimum Breaking Strength: | 3,600 lbs. (16 kN) |
| ANSI Standards: | Z359.14-2014, Z359.4-2013 |
| OSHA Standards: | 1926.502, 1910.66, 1910.140 |
