Description

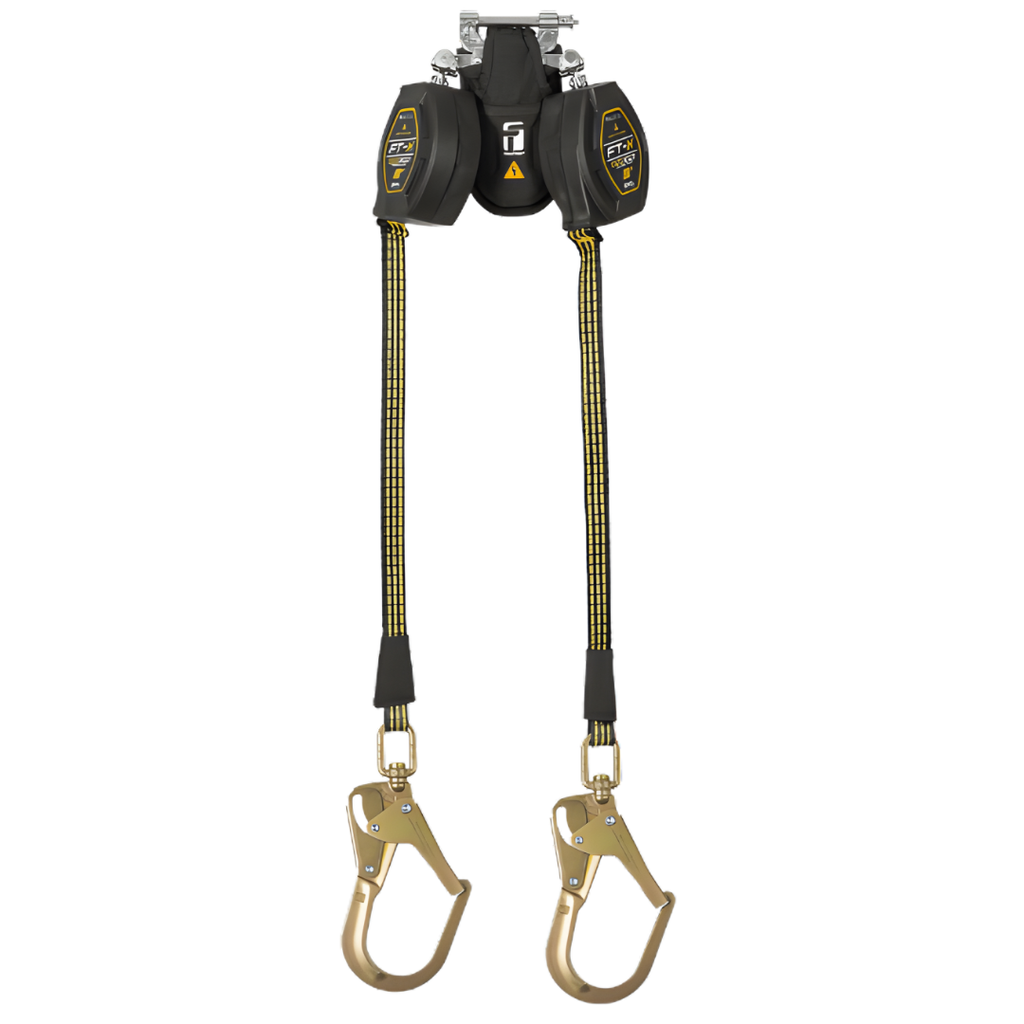

The FallTech 8' FT-X® EdgeCore™ Arc Flash Class 2 Leading Edge Twin-Leg SRL-P with Steel Swivel Rebar Hooks and SpeedLink™ delivers advanced protection for workers exposed to arc flash hazards and leading edge environments. This SRL is the first to combine an Arc Flash rating and Class 2 Leading Edge rating, giving crews a single solution for the toughest at-height electrical and edge exposures.
Built with a 100% Kevlar® EdgeCore™ synthetic lifeline, the unit provides exceptional arc resistance and durability while maintaining flexibility and smooth cable movement. The compact housing keeps the SRLs aligned with natural worker motion, enhancing mobility and reducing fatigue.
A Kevlar®/Nomex® energy absorber cover contains clear fall clearance charts and tables, making on-site planning easier. Inside, the refined mechanism minimizes nuisance lockups so workers can stay productive. This twin-leg system is rated for below D-ring tie-off up to five feet and is approved for leading edge hazards including precast and steel.
Featuring SpeedLink™ technology, the retractable units can be replaced in the field—reducing downtime and improving long-term ownership costs. Rated for workers up to 420 lb, this SRL is also AXIS™-enabled, allowing accurate fall clearance calculations through the AXIS safety app.
Fully compliant with ANSI Z359.14-2021 Class 2 SRL-P and meeting ASTM F887 arc flash standards, this unit is engineered for utilities, steel erection, and any environment where electrical and edge hazards converge.
Key Features:
-
Arc Flash + Class 2 Leading Edge protection in one SRL
-
100% Kevlar® EdgeCore™ lifeline for extreme arc resistance
-
Compact design improves alignment, comfort, and productivity
-
Kevlar®/Nomex® energy absorber with built-in fall clearance diagrams
-
Smooth internal mechanism reduces unintentional lockups
-
Approved for below D-ring tie-off up to 5 ft
-
Rated for workers up to 420 lb (with gear)
-
SpeedLink™ replaceable retractable units for reduced downtime
-
AXIS™-enabled for accurate minimum fall clearance calculations
-
Meets ANSI Z359.14-2021 Class 2 SRL-P and ASTM F887
Component Strength Ratings:
-
Lifeline: EdgeCore™ Arc Flash (Kevlar®), 5,000 lb min.
-
Energy Absorber: Polyester tear-away
-
Anchorage Connector: Plated alloy steel; 5,000 lb min., 3,600 lb gate
-
Dorsal Connector: Aluminum alloy; 3,600 lb min.
-
Static Strength: 3,600 lb min.
Performance:
-
ANSI SRL Class: Class 2 SRL-P
-
Average Arrest Force: 1,350 lb max
-
Max Arrest Force: 1,800 lb
-
Max Arrest Distance: 42"
User Capacity:
-
ANSI: 130–310 lb
-
OSHA: 130–420 lb
