Description

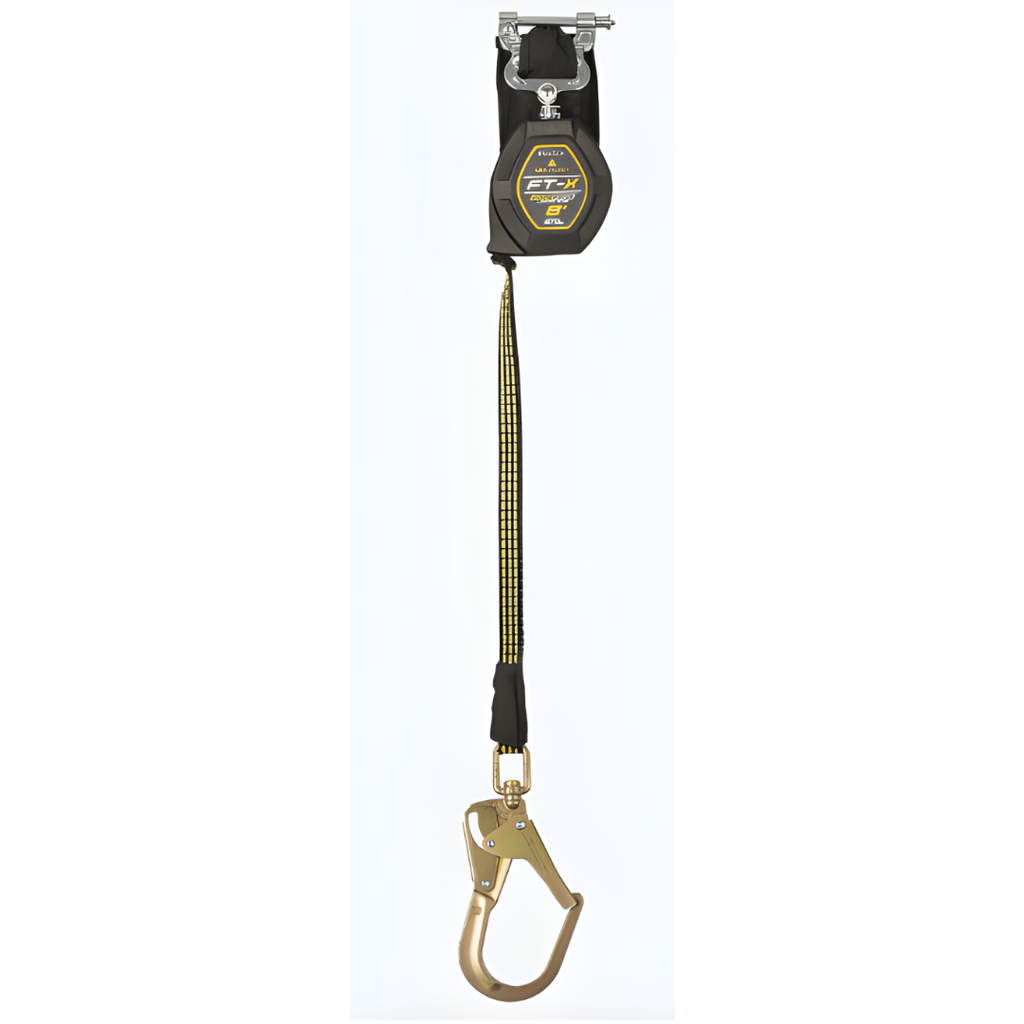

FallTech 8' FT-X® EdgeCore™ Arc Flash Class 2 Leading Edge SRL-P (Single-Leg)
Built for the toughest environments, this single-leg SRL delivers both Arc Flash protection and Class 2 Leading Edge safety—a first in the industry. Designed with FallTech’s 100% Kevlar® EdgeCore™ lifeline, it provides maximum durability, superior mobility, and dependable performance for workers exposed to extreme hazards.
Key Features
-
Arc Flash & Class 2 Leading Edge Rated — engineered for high-heat and sharp-edge environments.
-
EdgeCore™ 100% Kevlar® Lifeline — ultra-strong synthetic line with 5,000 lb minimum static strength.
-
Compact SRD Design — sits higher on the back for better movement, comfort, and productivity.
-
Kevlar®/Nomex® Energy Absorber Cover — includes detailed fall-clearance charts and tables for quick reference.
-
Smooth Internal Mechanism — reduces nuisance lockups so you can work freely.
-
Below D-Ring Tie-Off — approved for tie-off up to 5 ft below the dorsal D-ring.
-
Handles Leading Edge Hazards — ideal for work around steel and precast concrete edges.
-
High Capacity — rated for workers up to 420 lbs (including tools and gear).
-
AXIS™ Enabled — calculate minimum fall clearance instantly using the AXIS digital tool.
-
Meets Standards: ANSI Z359.14-2021 Class 2 SRL-P, ASTM F887 compliant.
Specifications
-
Lifeline: EdgeCore™ Kevlar®, 5,000 lb min.
-
Energy Absorber: Polyester tear-away
-
Anchorage Connector: Plated alloy steel, 5,000 lb min. static / 3,600 lb gate
-
Dorsal Connector: Aluminum alloy, 3,600 lb min.
-
Static Strength: 3,600 lb min.
-
Avg. Arrest Force: 1,350 lb max.
-
Max Arrest Force: 1,800 lb
-
Max Arrest Distance: 42"
-
User Capacity:
-
ANSI: 130–310 lb
-
OSHA: 130–420 lb
-
