Description

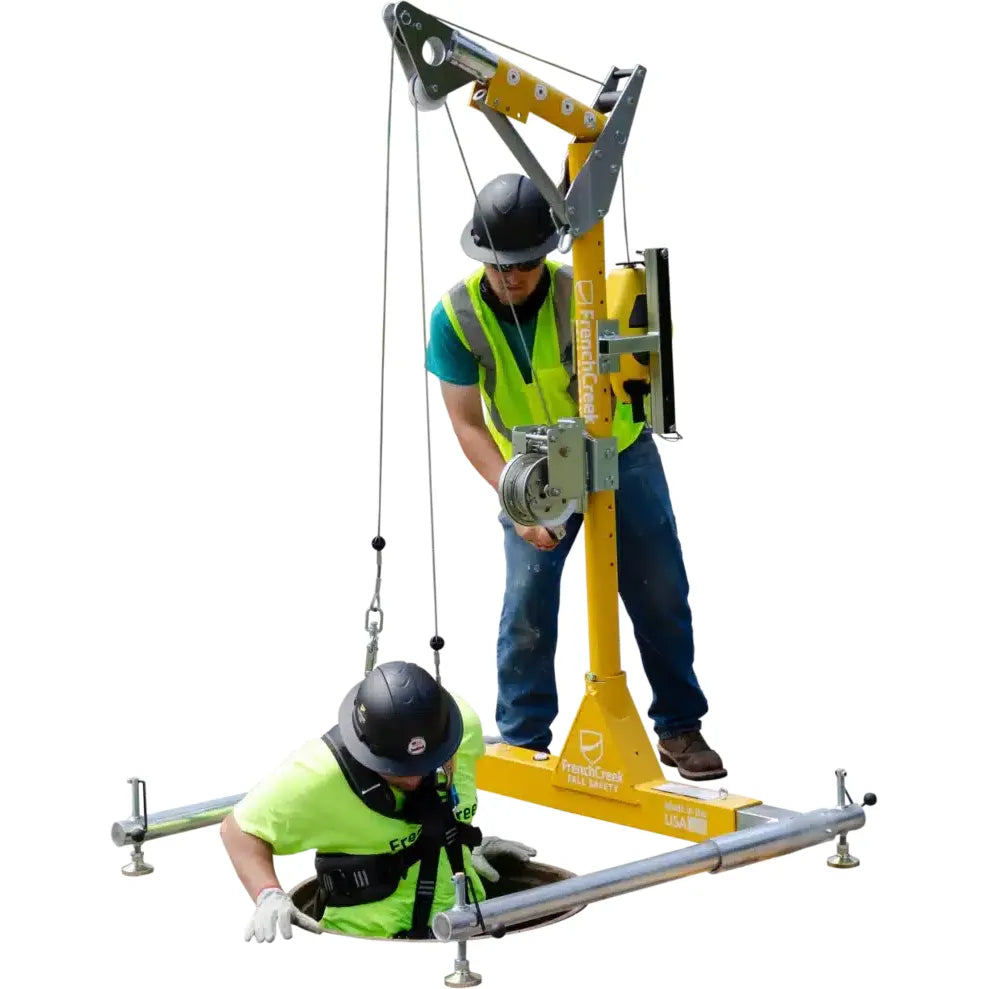

FrenchCreek’s Portable Davit System is designed to raise, lower, and suspend workers performing routine work duties and to facilitate rescues in confined space applications.
- Davit base adjusts from 36″-60″: Fits a wide range of openings
- Davit mast adjusts from 12″-30″ offset reach

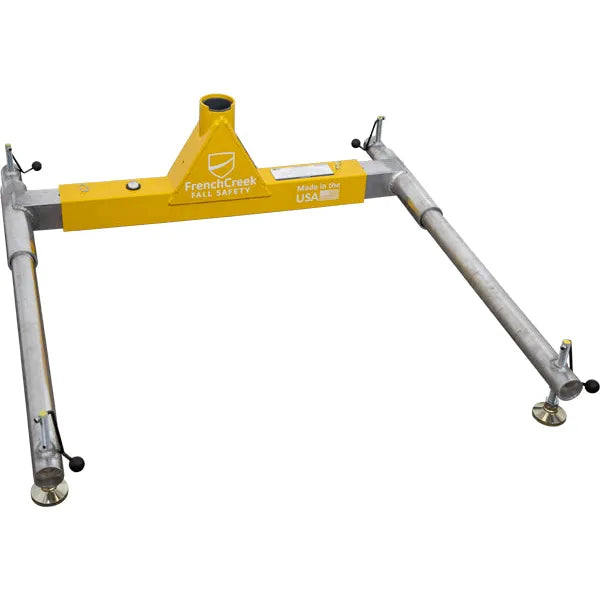

- The 3-piece base includes an integrated bullseye level and requires no tools

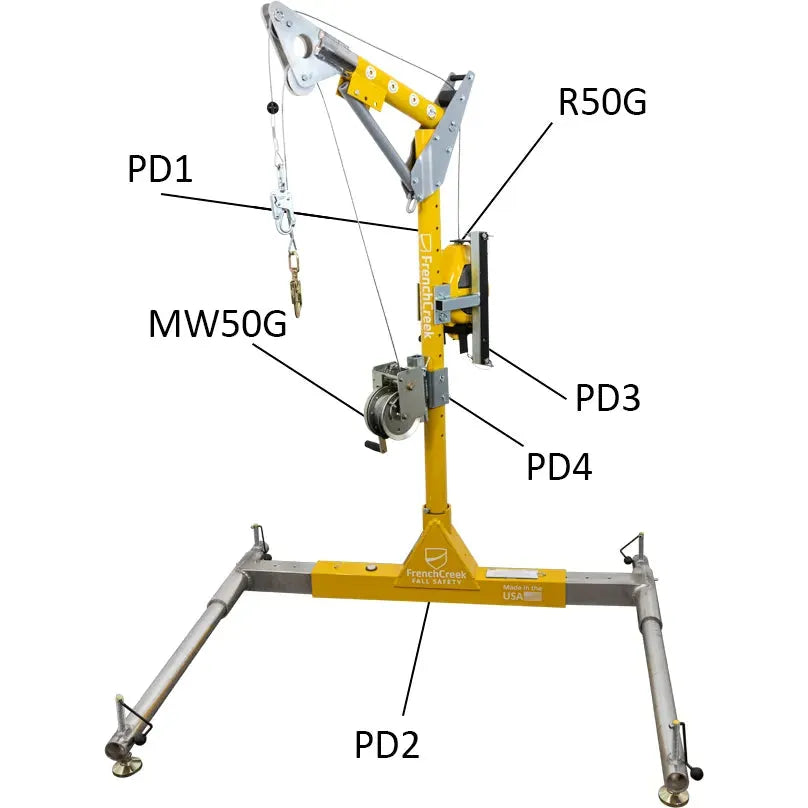

- As pictured includes parts numbers: PD1, PD2, PD3, PD4, MW50G. R50G
FrenchCreek’s 4-piece portable davit system designed for confined space entry and exit. Part numbers PD1-PD4 with MW50G and R50G mechanical units. Adjustable davit base, and offset davit mast. Lightweight powder-coated aluminum and stainless steel.
FEATURES
- System IncludesPart Number PD1-PD4, MW50G Winch, R50G rescue SRL
- David System Base36″-60″: Fits a wide range of openings
- Rescue SRLR50G 3-way rescue SRL
- Lifeline Length & MaterialGalvanized Steel, additional options available
- WinchMW50G Work Winch
- FeetTool free adjustable feet
- BoomAdjusts from 12″-30″ offset reach
- InstallationTemporary
SPECIFICATIONS
- SizeBase: Leg Length 48″/ Widest Width 67″ / Narrowest Width 43″
- Weight Capacity130-310 Lbs. ANSI, 400 Lbs. OSHA
- Capacity1 Entrant only, 310 lb. max
- Item Weight155 lbs.
- Hardware MaterialPowder coated aluminum, plated alloy steel
- Lifeline ConstituentGalvanized wire rope
- StandardsOSHA 1926.502 and ANSI 1910.66
