Description
Cable System

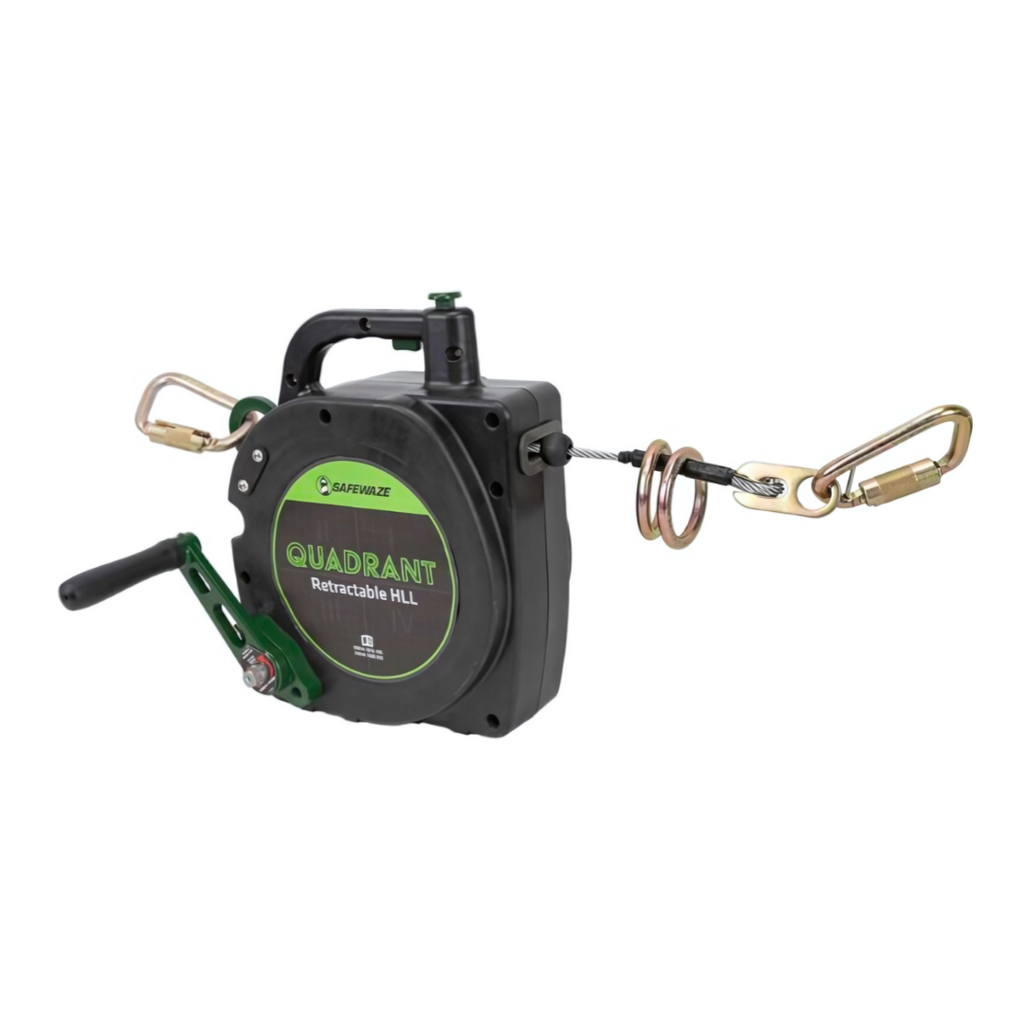

The Quadrant Retractable HLL offers the ultimate in jobsite flexiblity as a temporary 2-person HLL system. The versatile length up to 65′ allows use in a wide range of environments with a user-friendly setup in seconds plus no-hassle storage of the durable cable lifeline within protective housing.
Features:
-
Set galvanized cable at any length up to 65'
-

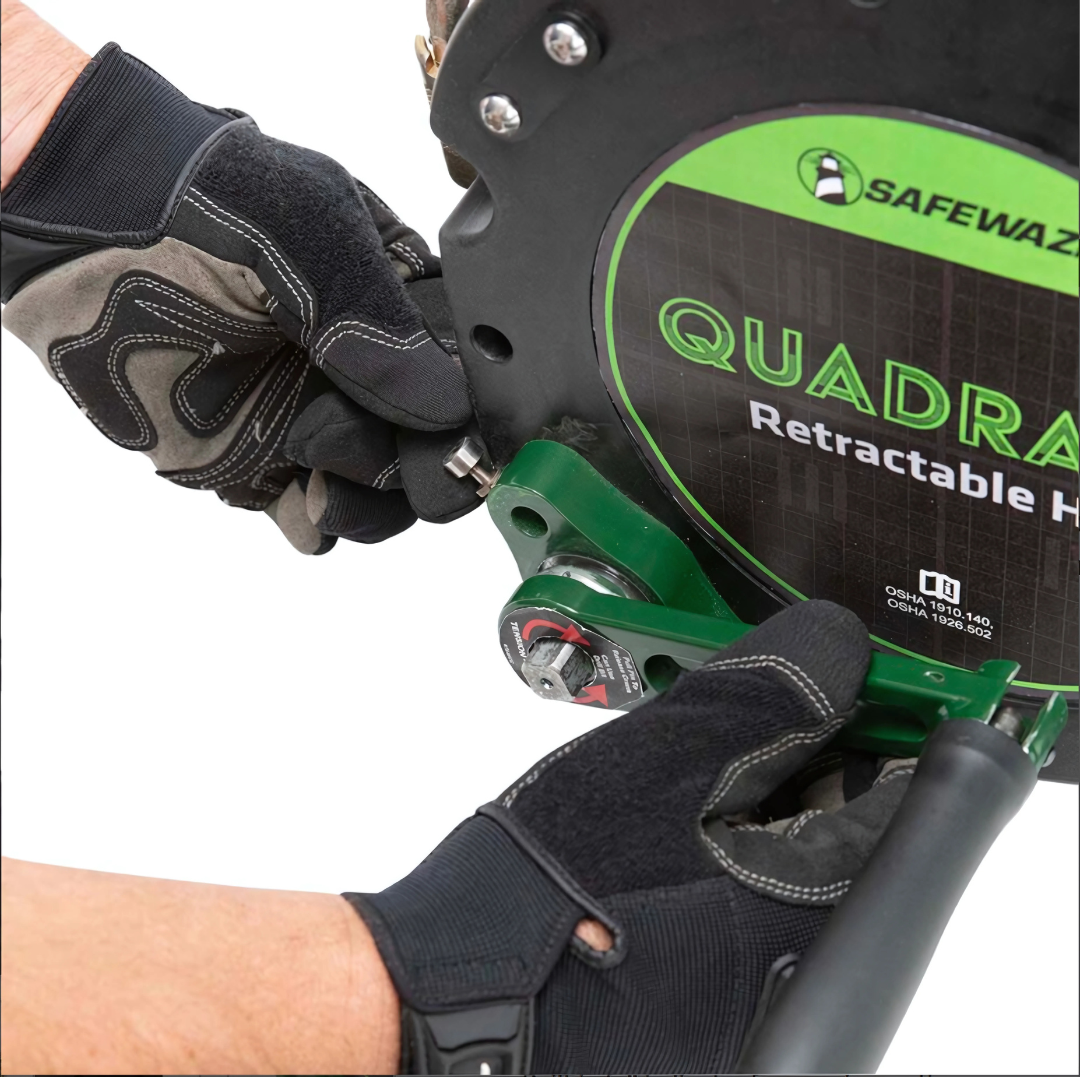

Quick, easy setup with smooth payout
-

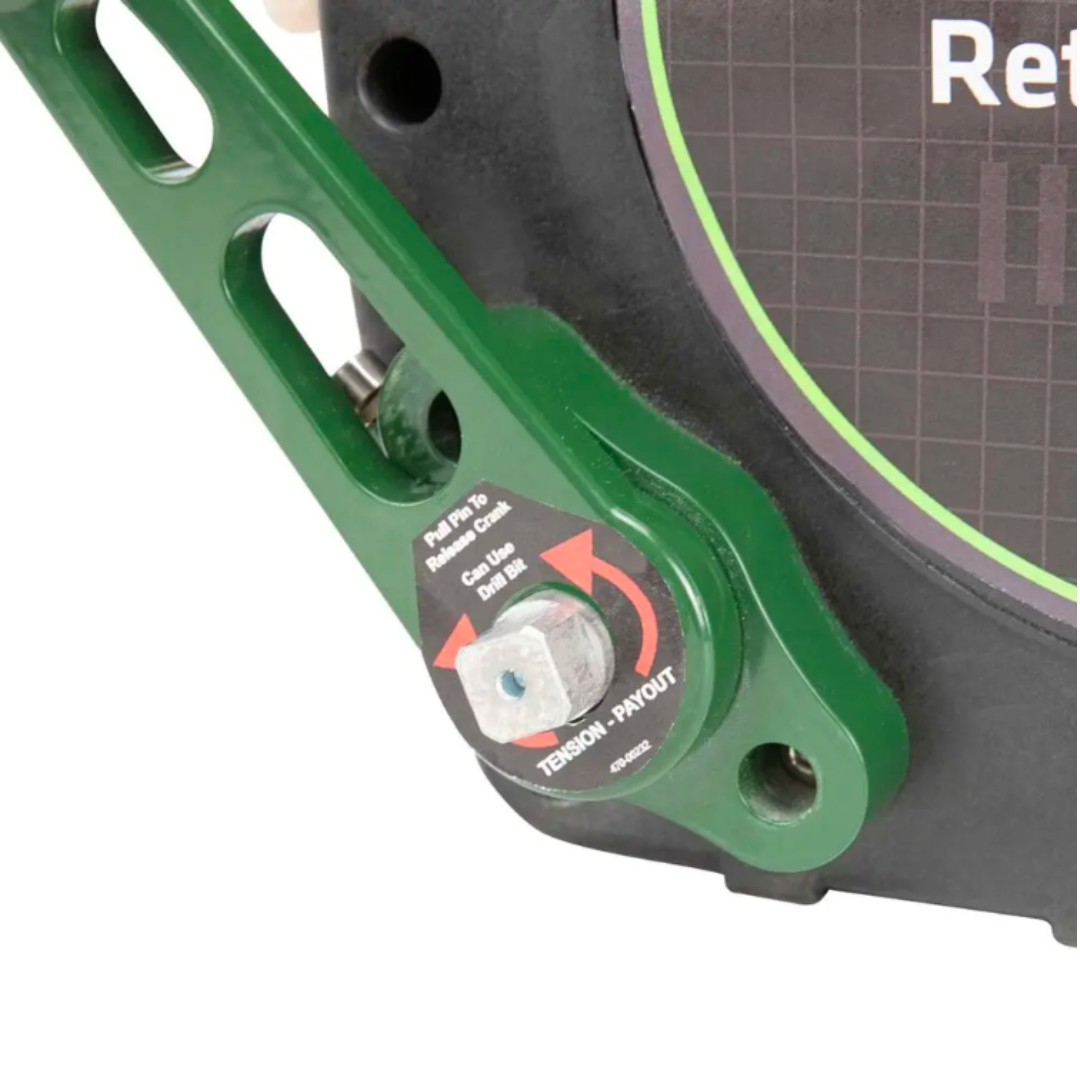

Light, compact design with collapsible crank
-
Captive eye and carabiner connection points
-

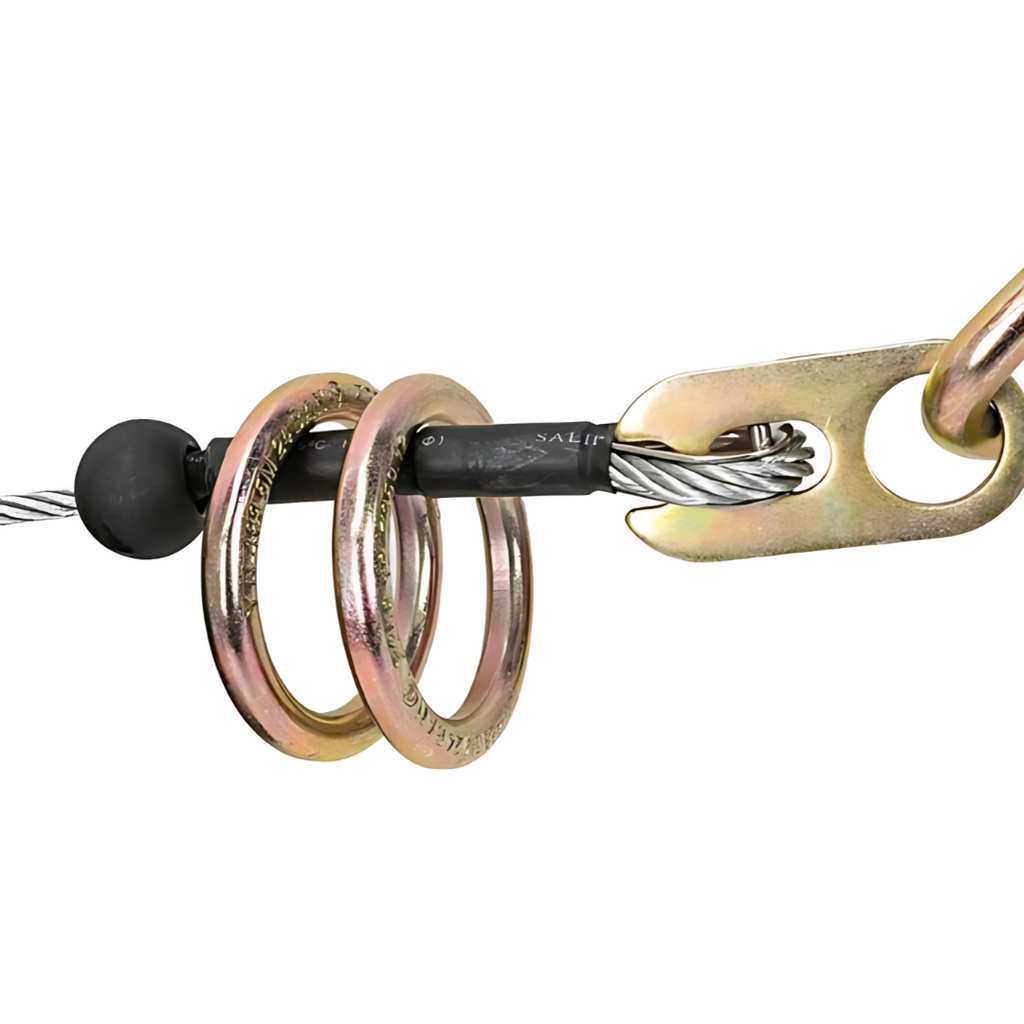

O-rings included to reduce cable wear
-
Efficient dual-action tension release
-

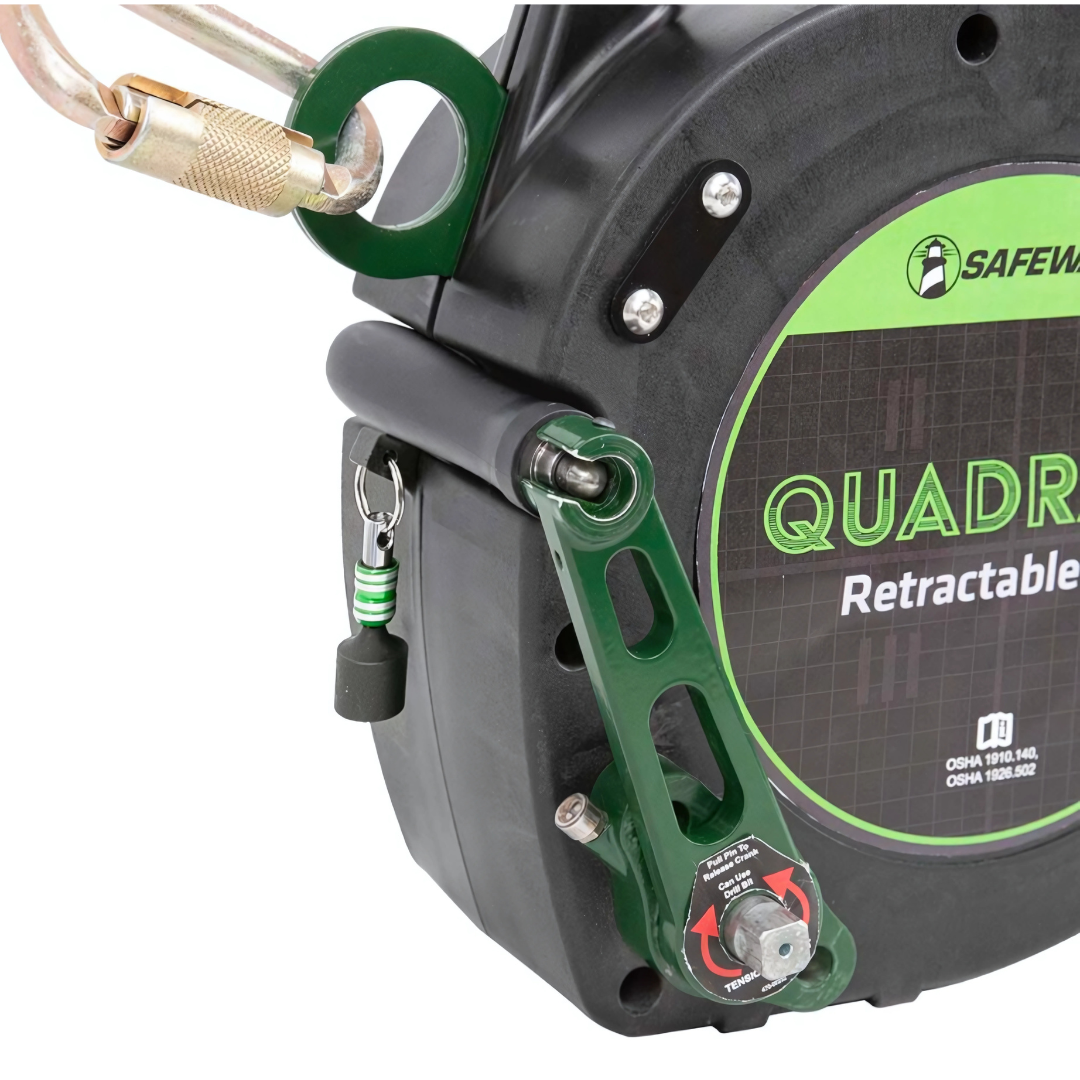

Built in fall indicator for easy inspection
-
Free wheel mode for practical jobsite use
-
Designed for stability when tensioning
-

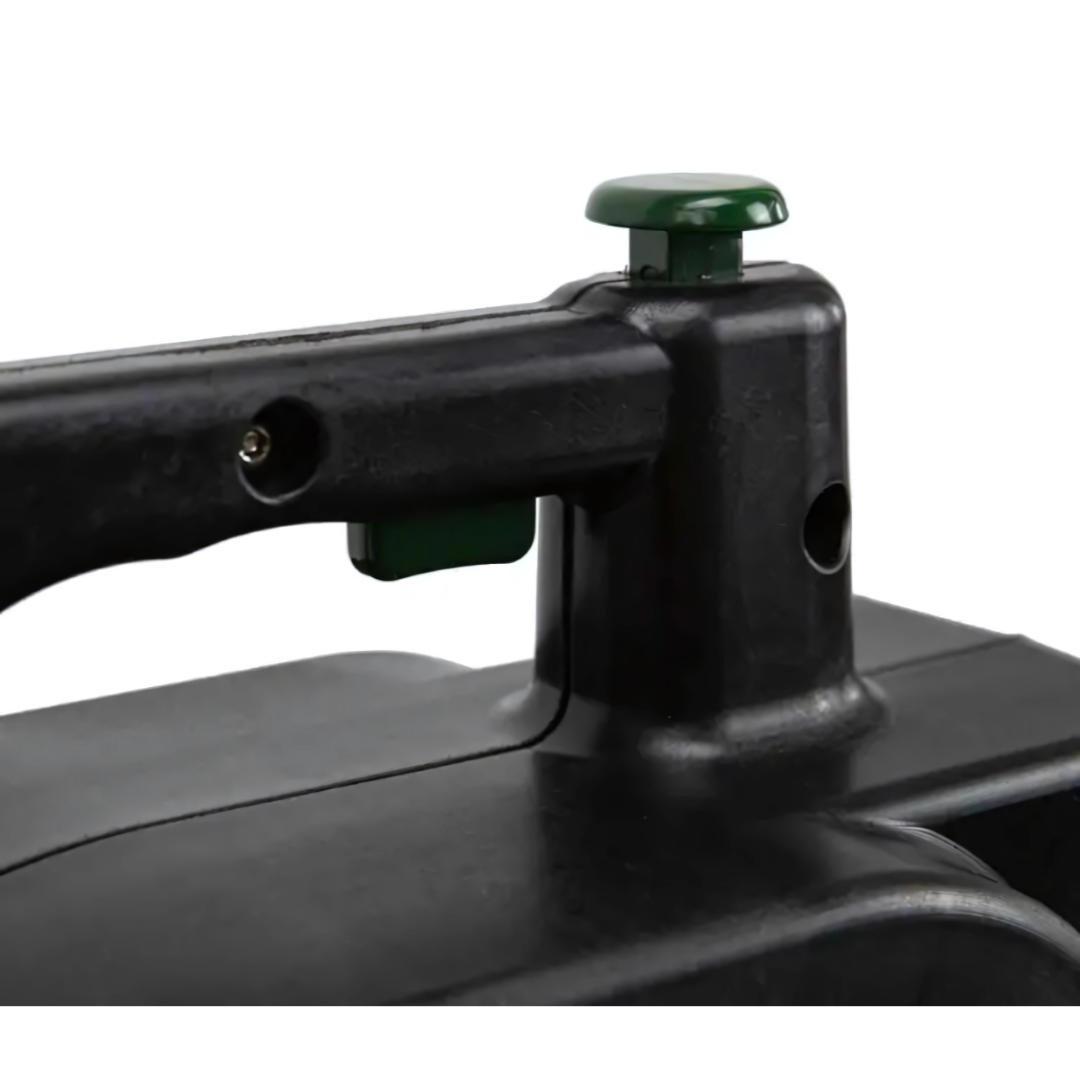

Ergonomic handle designed for effortless carrying
- Repairable by an authorized repair center
Specifications:
| Materials: | 1/4" galvanized steel cable, steel and aluminum components, nylon and glass fiber housing |
| Weight: | 24.2 lbs. (11.0 kg) |
| Length: | 65' (19.8 m) |
| Minimum Breaking Strength: | 5,000 lbs. (2268 kg) |
| System Capacity: | Maximum 2 users per system |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Peak Dynamic Pullout Load: | 2,500 lbs. (1134 kg) |
