Description
The X1000 mobile fall protection system offers two overhead anchor points up to 17-22 feet in height and supports a maximum anchor capacity of 310 pounds. The unit is road-towable and features built-in fork pockets for easy transport indoors.
The X1000 XSERIES Mobile Grabber model is completely manual, operated by a hand-pumped hydraulic system, providing the most cost-effective way to ensure workers always have an overhead anchorage—anytime, anywhere.
The X1000E model is a powered version that upgrades the manual operating system to an electric-driven hydraulic lift system operated by remote control. It also enables the addition of various power features such as high-efficiency solar panels and wireless controls, and our most popular option, the Grabber Go! The size and capacity are the same as the standard X1000 unit.
The X1000 models are built in an ISO-9001 factory, right here in the USA, and undergo strict testing parameters, exceeding anchorage requirements for OSHA.
Weight | 2200 lbs. |
Max. Working Height | 22' (6.7m) |
Min. Working Height | 17' (5.18m) |

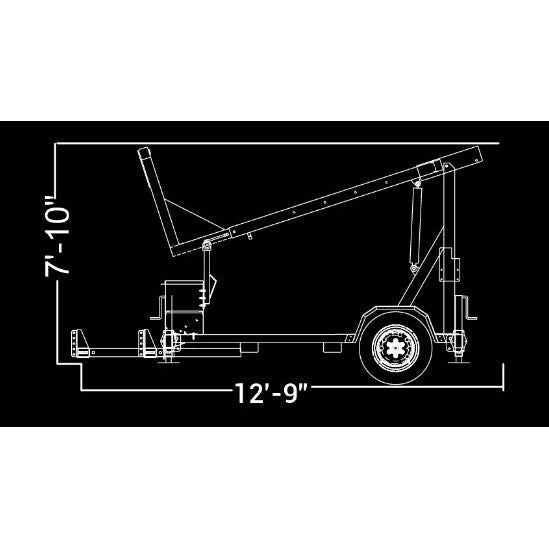

Max. Folded Height | 7'10" (2.38m) |

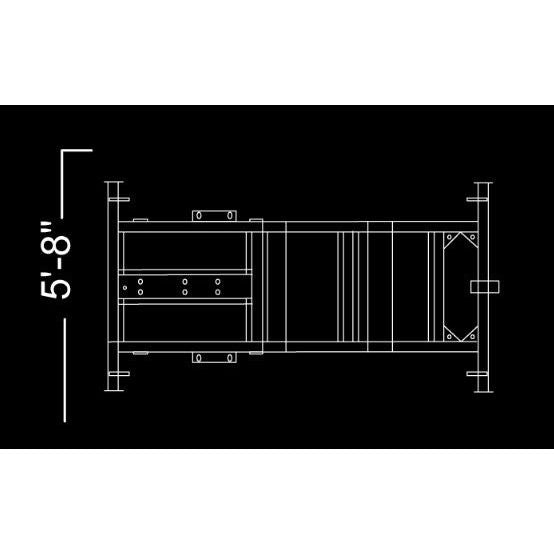

Towing Width | 5'8" (1.73m) |
Overall Length | 12'9" (3.89m) |
Max. Arm Reach Out | 3' (.91m) |
Max. Anchor Point Capacity | 310 lbs. |
Max. Allowable Users | 2 |
Max. Towing Speed | Posted Highway Speed |
Trailer Plug Wiring | 4-Pole Blade System Lead |
Actuating Method | Manual Operating System |
Outrigger System | 4 Manually Adjustable Jacks |
