Description

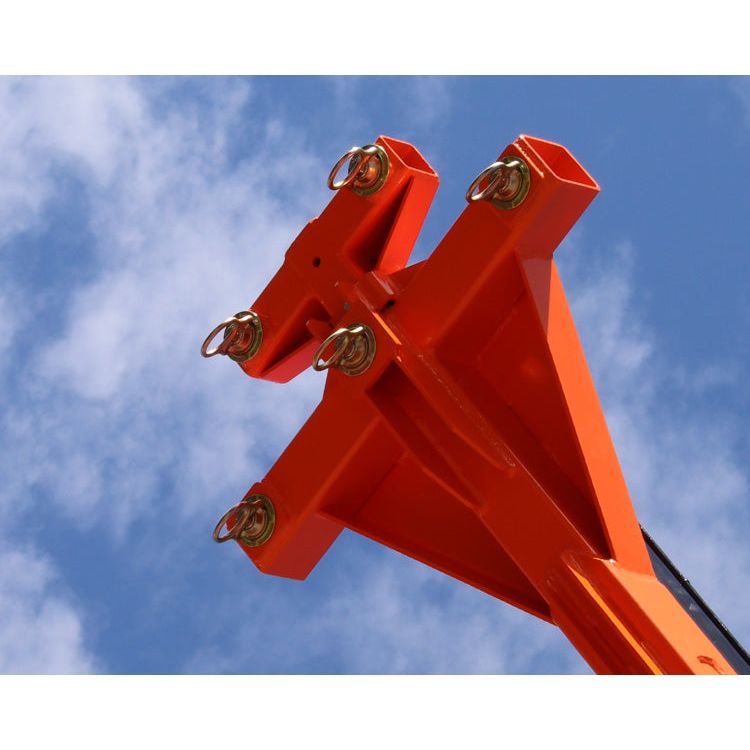

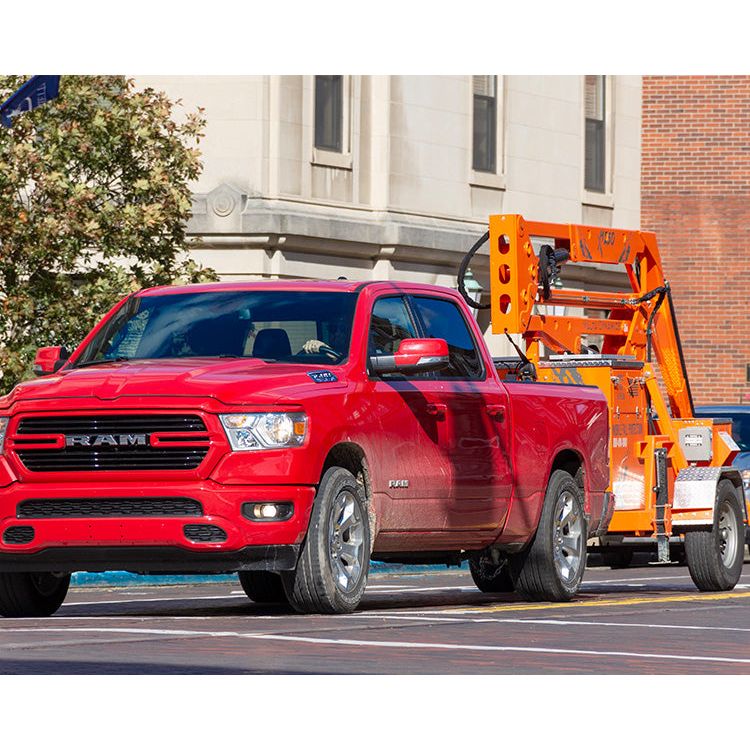

The X1260 is a road-towable, mobile fall protection anchor system that offers the flexibility to provide up to five workers with overhead anchor points. This unit provides overhead anchorage that is adjustable on-site ensuring flexibility for various job site requirements.
At maximum working height, the X1260 includes a 5-foot extendable mast that provides one worker overhead tie-off up to 34 feet in height. This unit accommodates users working simultaneously, with maximum anchor point capacity of 310lbs.
The battery powered X1260 is designed for easy set-up. Workers can adjust the manual outrigger jacks, tie-off, and work with confidence to get the job done. With additional add-ons available, the XSERIES Mobile Grabber is fully customizable for a wide range of industries and applications.
The X1260 is built in an ISO-9001 factory, right here in the USA, and undergoes strict testing parameters, exceeding anchorage requirements for OSHA.
| Weight | 5940 lbs. |
| Max. Working Height | 34' (10.4m) |
| Min. Working Height | 2' (.6m) |
| Max. Folded Height | 8'1" (2.6m) |
| Towing Width | 5'9" (1.8m) |
| Overall Length | 15'6" (4.7m) |
| Max. Arm Reach Out | 9'-9.5’ (3m) |
| Max. Anchor Point Capacity | 310 lbs. |
| Max. Allowable Users | 5 |
| Max. Towing Speed | Posted Highway Speed |
| Trailer Plug Wiring | 7-Pole Blade System Lead |
| Actuating Method | Electric Powered Hydraulic System |
| Controls | Remote (15ft Cord length) |
| Power Source | 12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge |
| Charging System | 110 Volt Quick Smart Charger with Cord |
| Outrigger System | 4 Manually Adjustable Jacks |
Request a quote and lead time information by calling 303-537-5832.
