X500: Rotatable 360-Degree Overhead Anchor


Price:
Sale price$0.00

Description

The X500 is a free-standing, one-user, mobile fall protection system. The anchor height is 25’ from the ground level, and the mast rotates 360 degrees with no more than the push of a hand. The multi-position boom lock allows a user to place the anchor point directly above them, minimizing free fall distance in the case of a fall, and eliminating the additional hazards of falling while anchored below a user’s D-ring.

The base is a factory-filled counterweight with fork pockets for easy transport around a facility, crane pick points can be used for transport and assembly, and fully adjustable jacks to ensure a level height for your X500, even if the ground is not level. This machine comes ready-to-use after just a few minutes of assembly, it undergoes strict testing parameters, and exceeds anchorage requirements for OSHA.

The X500 is the most versatile, easy to assemble single davit arm fall protection anchor available, and it’s built in an ISO-9001 factory, right here in the USA.

At Malta Dynamics we are proud to make products that are Field Tested, and Field Approved. The X500, and all our products are engineered and designed to provide safe and simple user-friendly experiences. We come from the field and know that you need high-quality safety products that work the way they should every time.

Weight 6600 lbs.

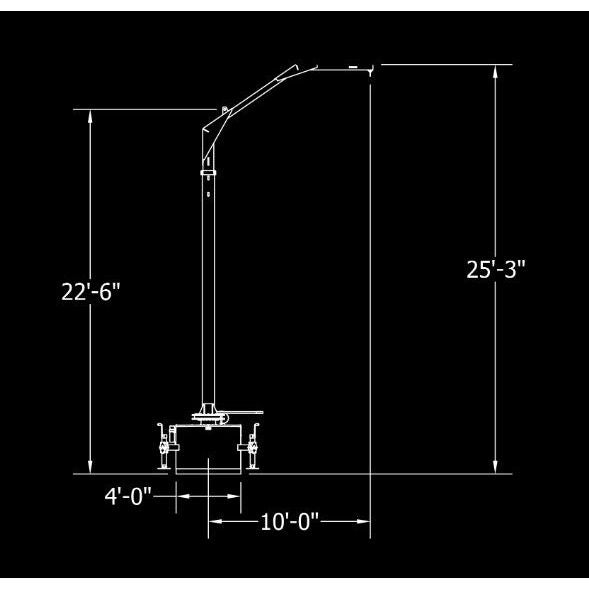

Max. Working Height 25'3" (6.7m)
Width 6'2" (1.9m)
Length 13'2" (3.96m)
Max. Anchor Point Capacity 310 lbs.
Max. Allowable Users 1



Request a quote and lead time information by calling 303-537-5832.
