Description
Barricade System

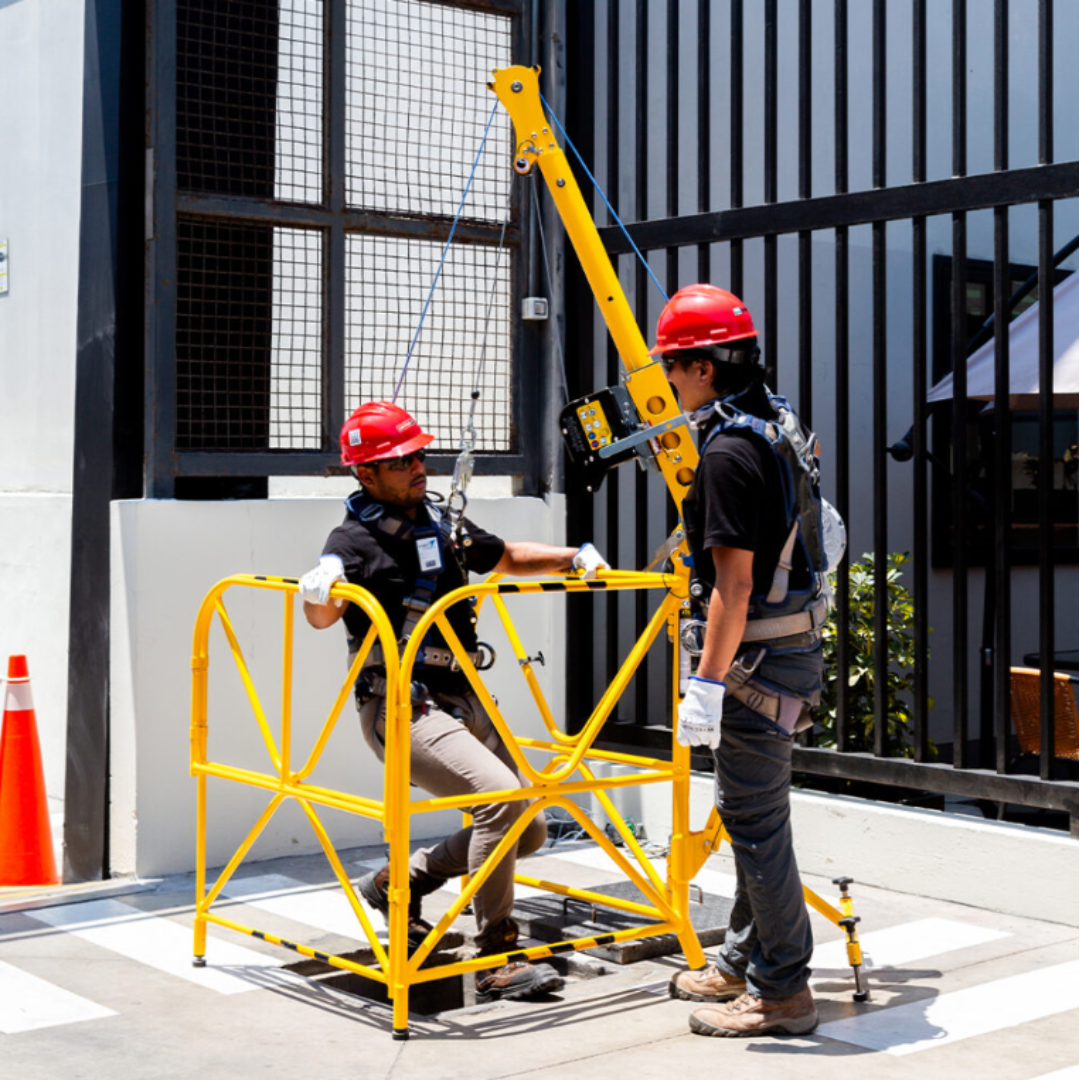

The Xtirpa Davit Arm and Manhole Guard with Integrated Mast does double duty to both secure the entry point and minimize fall risks. This portable system is perfect for situations where an adapter base isn’t an option such as sewers, manholes, pits, pipelines and other underground chambers.
Features:
- Lightweight aluminum is mobile for use exactly where you need it
- Set up the system quickly in under 2 minutes with no tools required
- Adaptable for a wide range of confined space uses
- Constructed from quality aircraft-grade materials
- Innovative built-in corner configuration
- Fits in tight spaces other equipment cannot
- Expandable with manhole guard sections IN-2101 to increase your work zone
- Built-in device plate to attach 3-way SRL, Personnel Winch or Material Winch
- Stabilizer Leg provides added balance, especially for heavy winches
- System consists of:
- 1. IN-2210 : Davit arm with 610mm (24") reach

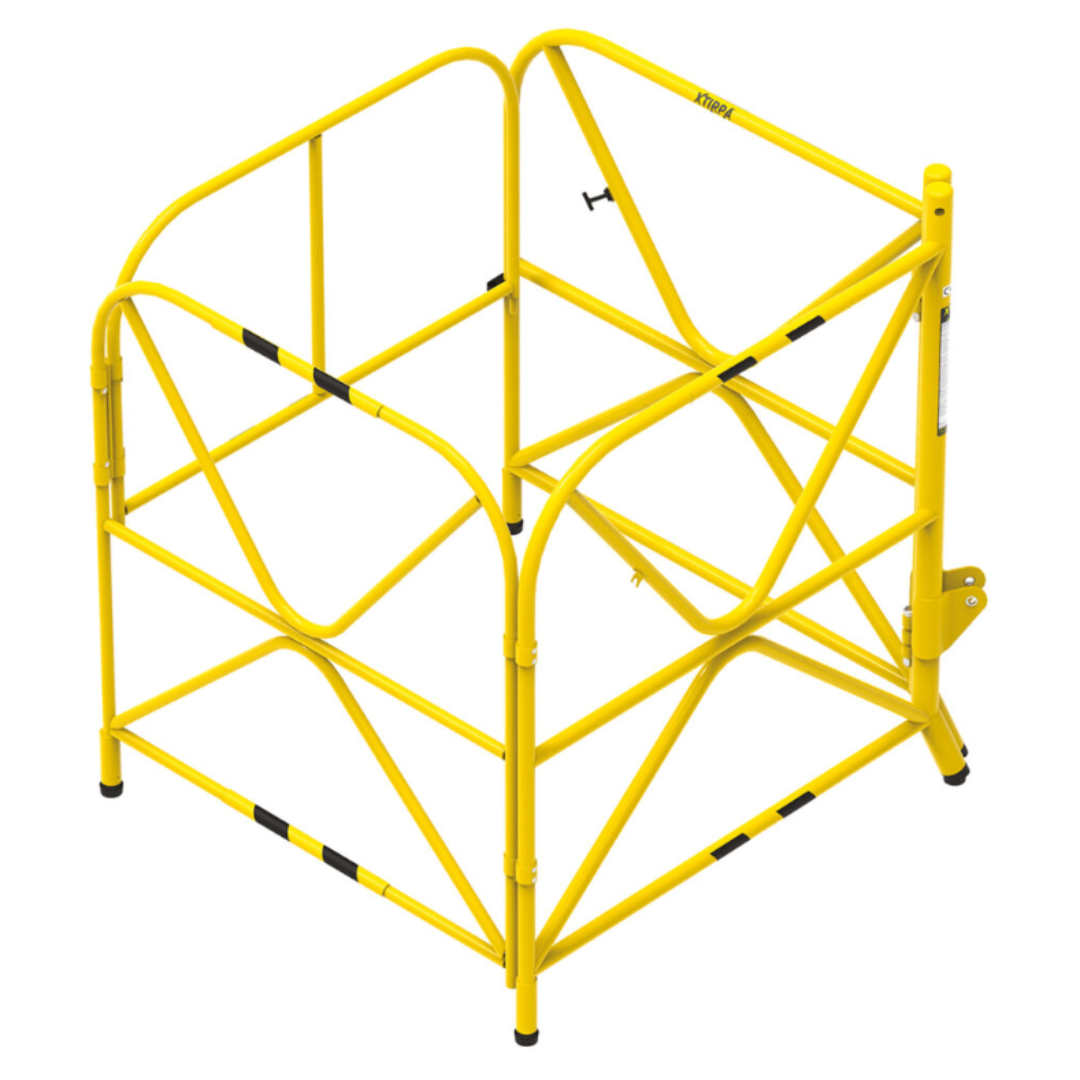

- 2. IN-2108 : Manhole guard with integrated mast 1067mm (42"H x 39"W)

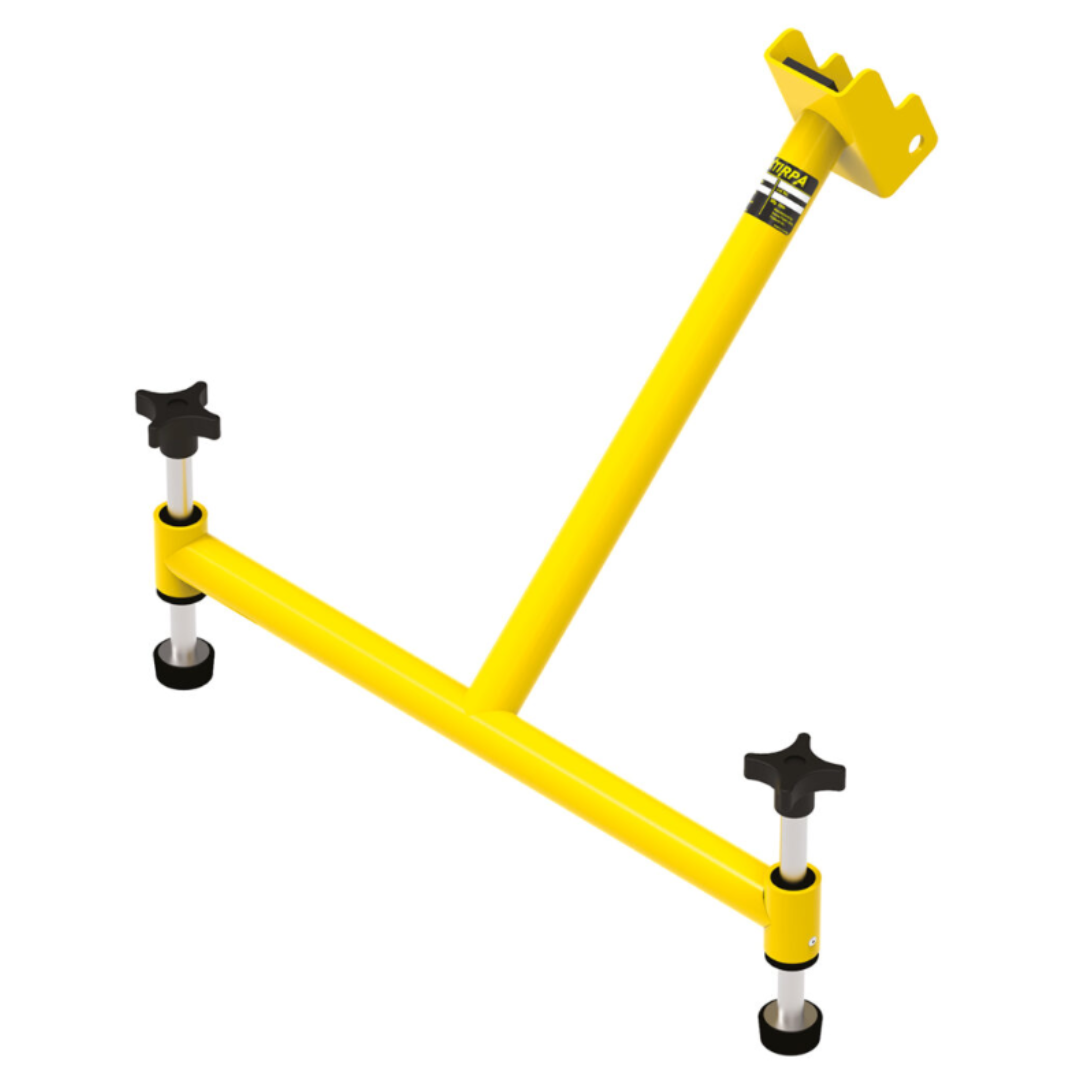

- 3. A2108-18 : Stabilizer for 1067mm (42") manhole guard
| Materials: | Aluminum |
| Total System Weight: | 70 lbs. (32 kg) |
| IN-2210: | 33 lbs. (15 kg) |
| IN-2108: | 33 lbs. (15 kg) |
| A2108-18: | 4 lbs. (2 kg) |
| ANSI Standards: | Z359.1 |
| OSHA Standards: | 1910.66 |
All products are subject to availability, and inventory levels may fluctuate. This product has a lead time of 14 days before it ships. For detailed information, please call 303-537-5832.
