Description

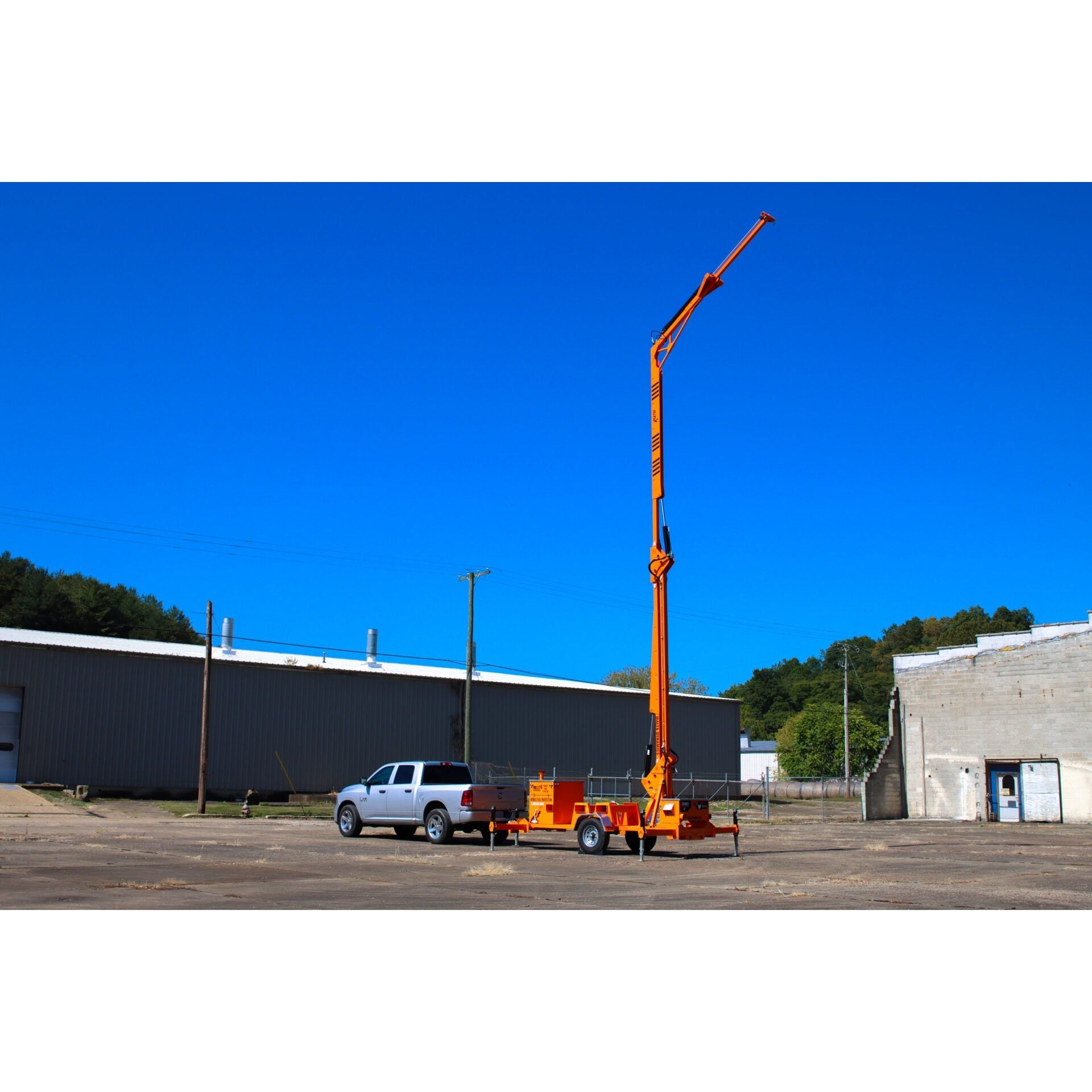

The XSERIES X1270 is a road-towable, mobile fall protection anchor system for 2 workers, with an anchor height of 45′ for both users. This unit provides overhead anchorage that is adjustable on-site ensuring flexibility for various job site requirements.

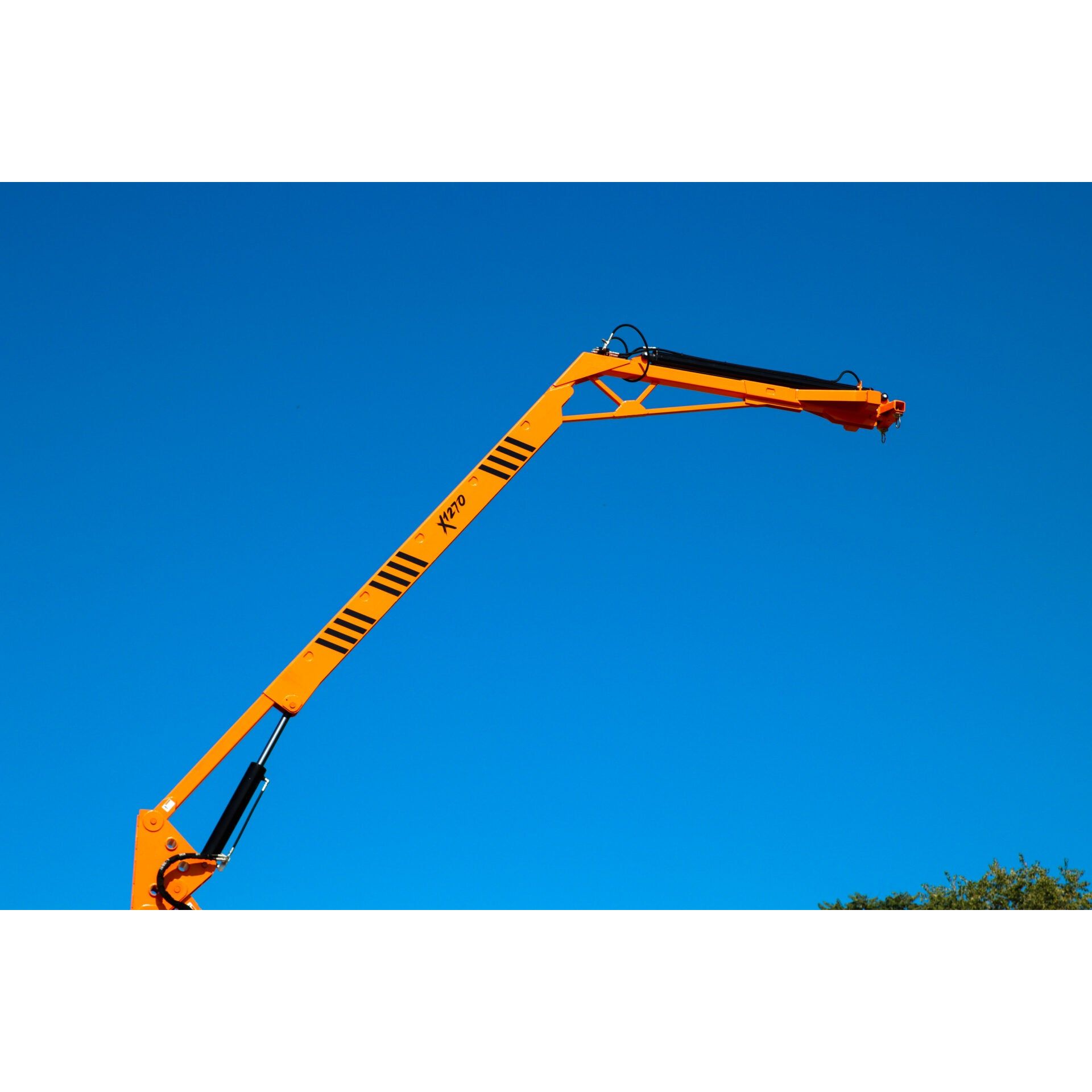

The X1270 operates on a folding, reinforced steel mast, controlled by multiple synchronized hydraulic cylinders. This allows the same protection at 20 feet for 2 users, or fully extended at 45′, and any height in between.
The battery powered X1270 is designed for easy set-up. Workers can adjust the manual outrigger jacks, tie-off, and work with confidence to get the job done.
With additional add-ons available, the XSERIES Mobile Grabber is fully customizable for a wide range of industries and applications. The X1270 is built in an ISO-9001 factory, right here in the USA, and undergoes strict testing parameters, exceeding anchorage requirements for OSHA.
| Weight | 6700 lbs. |
| Max. Working Height | 45' (13.7m) |
| Min. Working Height | 2' (.6m) |
| Max. Folded Height | 8'3" (2.5m) |
| Towing Width | 5'9" (1.8m) |
| Working Width | 10'9" (3.3m) |
| Overall Length | 20'10" (6.4m) |
| Max. Arm Reach Out | 10'4" (3.1m) |
| Max. Anchor Point Capacity | 310 lbs. |
| Max. Allowable Users | 2 |
| Max. Towing Speed | Posted Highway Speed |
| Trailer Plug Wiring | 7-Pole Blade System Lead |
| Actuating Method | Electric Powered Hydraulic System |
| Controls | Remote (15ft Cord length) |
| Power Source | 12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge |
| Charging System | 110 Volt Quick Smart Charger with Cord |
| Outrigger System | 4 Manually Adjustable Jacks |
Request a quote and lead time information by calling 303-537-5832.
