Description

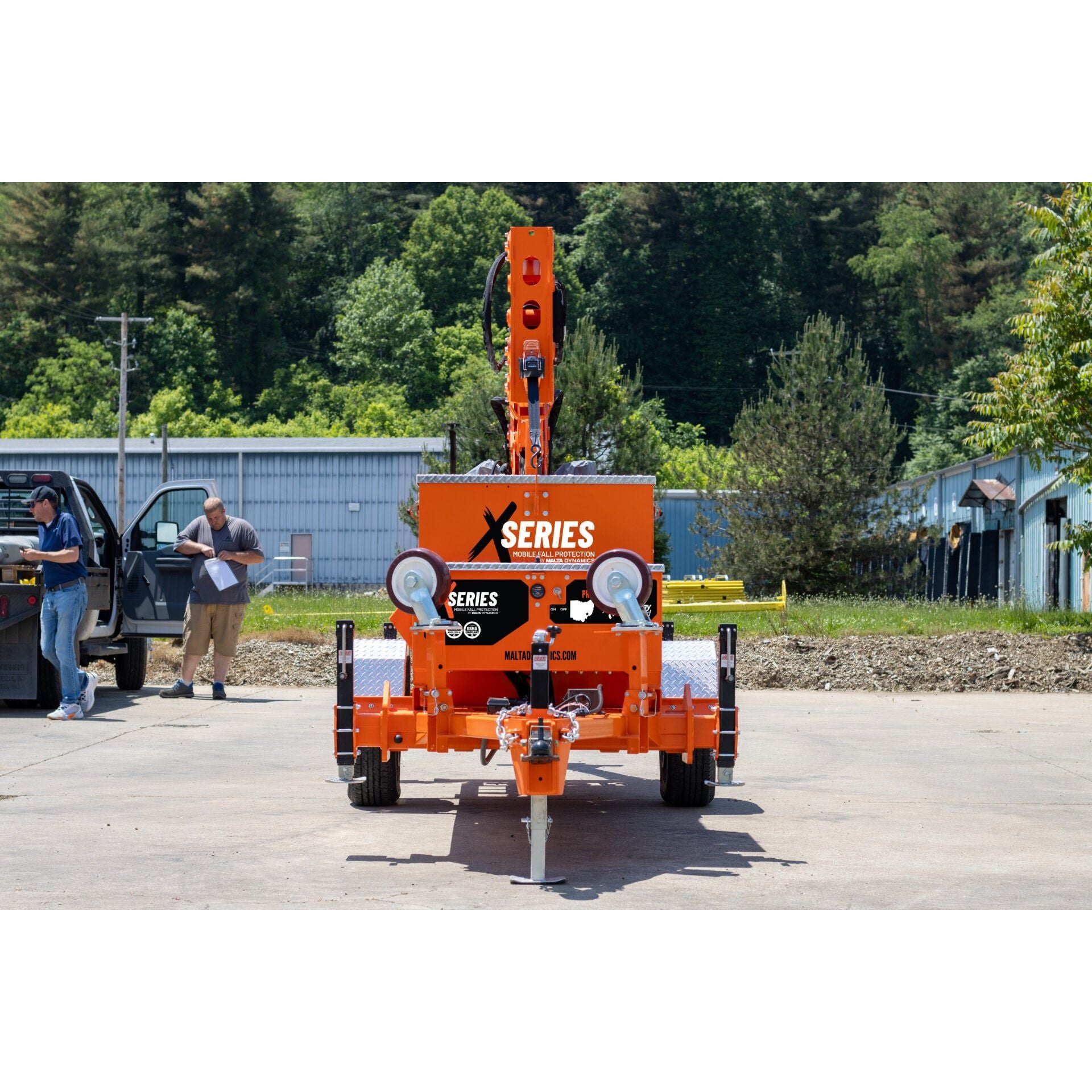

The XSERIES X360 is a road-towable, mobile fall protection anchor system for 2 workers, with an anchor height of 34′-6″ for both users. This unit provides overhead anchorage that is adjustable on-site with 360-degree rotation ensuring flexibility for various job site requirements.
The mast seamlessly rotates with independent controls allowing for 360-degree positioning of the mast. This creates efficiencies by allowing workers to stay positioned under their anchor point without having to reposition the outriggers.

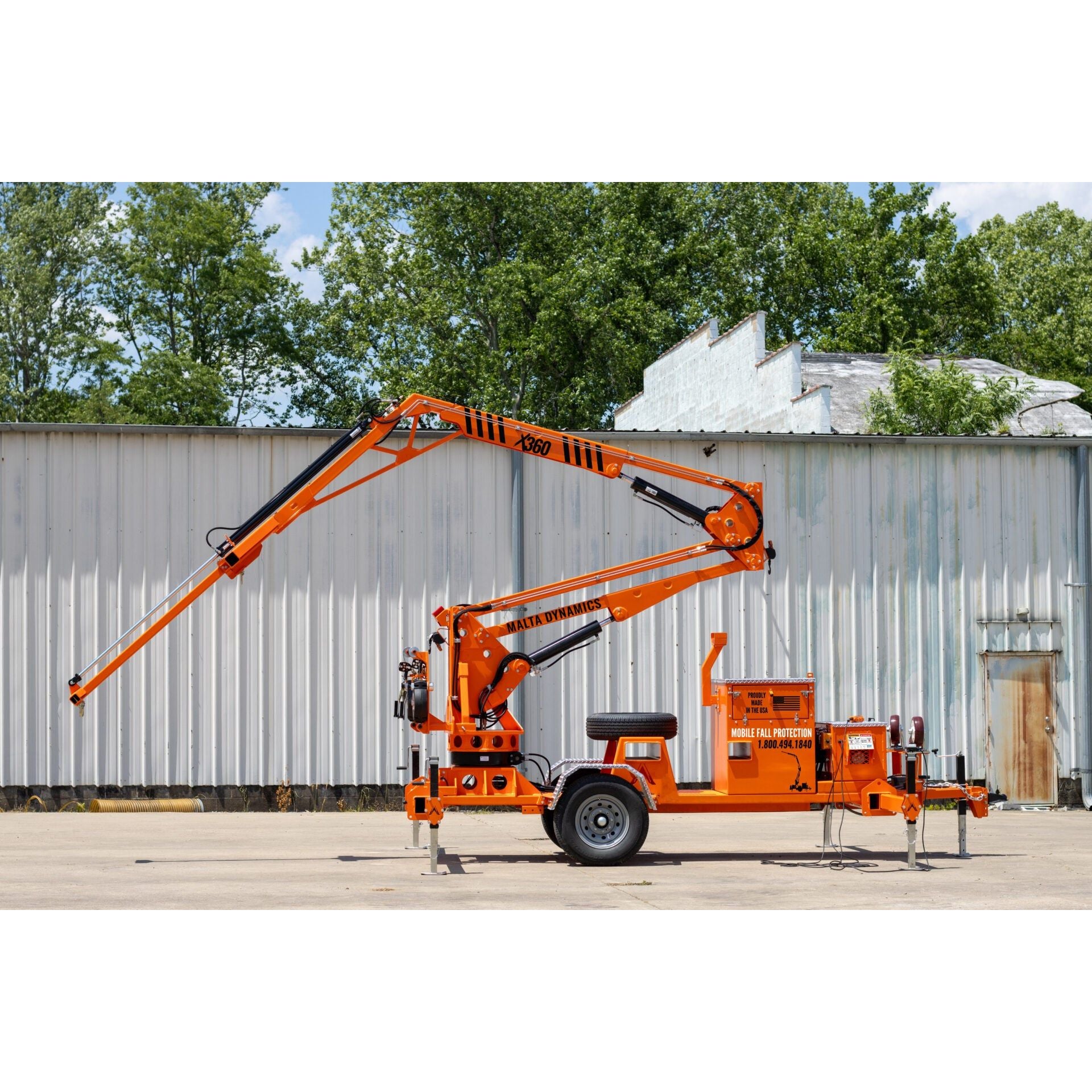

The X360 operates on a folding, reinforced steel mast, controlled by multiple synchronized hydraulic cylinders. This allows the same protection at 2 feet for 2 users, or fully extended at 34′-6″, and any height in between.
The battery powered X360 is designed for easy set-up. Workers can adjust the manual outrigger jacks, tie-off, and work with confidence to get the job done.
With additional add-ons available, the XSERIES Mobile Grabber is fully customizable for a wide range of industries and applications. The X360 is built in an ISO-9001 factory, right here in the USA, and undergoes strict testing parameters, exceeding anchorage requirements for OSHA.
| Weight | 7180 lbs (3257kg) |
| Max. Working Height | 34'-6" (10m) with Mast Fully Extended |
| Min. Working Height | 2' (.6m) |
| Max. Folded Height | 8'8" (2.6m) |
| Frame Width | 5'9" (1.7m) |
| Outriggers Extended Width | 10'9" (3.3m) |
| Overall Length | 20'5" (6.2m) |
| Max. Arm Reach Out | 13’-6” (4.1m) |
| Max. Anchor Point Capacity | 310 lbs. |
| Max. Allowable Users | 2 |
| Max. Towing Speed | Posted Highway Speed |
| Trailer Plug Wiring | 7-Pole Blade System Lead |
| Actuating Method | Electric Powered Hydraulic System |
| Controls | Pendant Remote (15ft Cord length) Remote for Rotation (15ft cord length) |
| Power Source | 12 Volt Battery (210 Amp Hour Rating) w/30A Fuse & Battery Gauge |
| Charging System | 110 Volt Quick Smart Charger with Cord |
| Outrigger System | 4 Manually Adjustable Jacks |
Request a quote and lead time information by calling 303-537-5832.
